ADDAC 705 - Stinggy Filter (Utolsó akciós darab)
11 sold in last 24 hours
Wasp filter clone

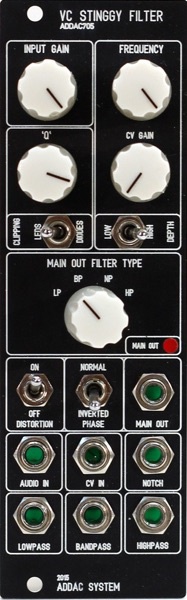

VC Stinggy Filter
Here's our new filter inspired by the original WASP Filter.
This module features:
.Four diferent filter types: Low-Pass, Band-Pass, Notch-Pass and High-Pass with independent audio outputs.
.Cutoff features a voltage-controlled cv input with a dedicated cv attenuator pot.
.Two switches selects different Resonance clipping paths: no clipping / diodes and Resonance depth: high / low.
.The Main output filter type can be selected through a 4 position switch.
.The Main output circuit features a Distortion/Fuzz circuit that adds extra harmonics to the filtered audio.
.Phase switch selects the Main output phase polarity.
.One Led monitors the audio signal of the main output.
| Megvalósított funkciók | |
|---|---|
| VCF | Igen |
| Egyebek | |
| Gyártó | ADDAC |
| Szélesség (HP-ben) | 8 |
| Eurorack | Igen |
